Ease-Out Tween

Introducing Ease-Out Tween

Description

This article is a continuation from the ../ease-in-tween article. An Ease-Out function is the reverse of an Ease-In function in both the x and y axis. So we will reverse of parabola function mapping 0 to 1 to 1 to 0. We will present the graphical plot and demonstrate the Ease-Out animation using the same example. The update will be just an additional reverse mapping function just as the update from linear tween'ing to Ease-In tween was just an additional parabola function.

Audience

You are a web programmer interested in gaining insight into programming animations from scratch.

Demo - Ease In

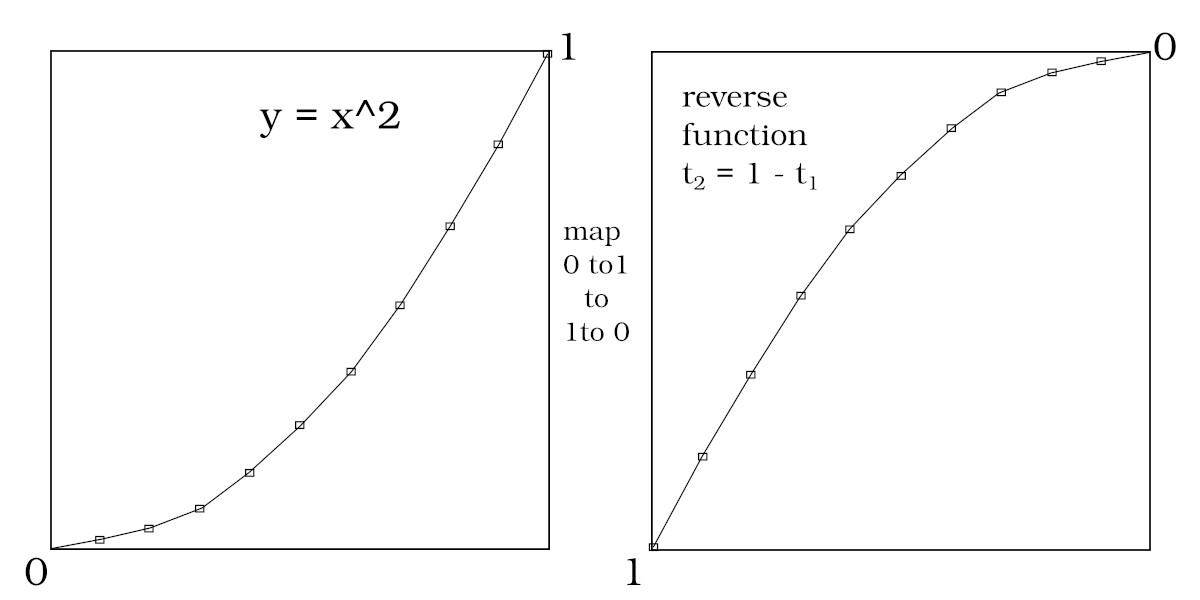

View the plot of the basic parabola function side by side the reverse of the same:

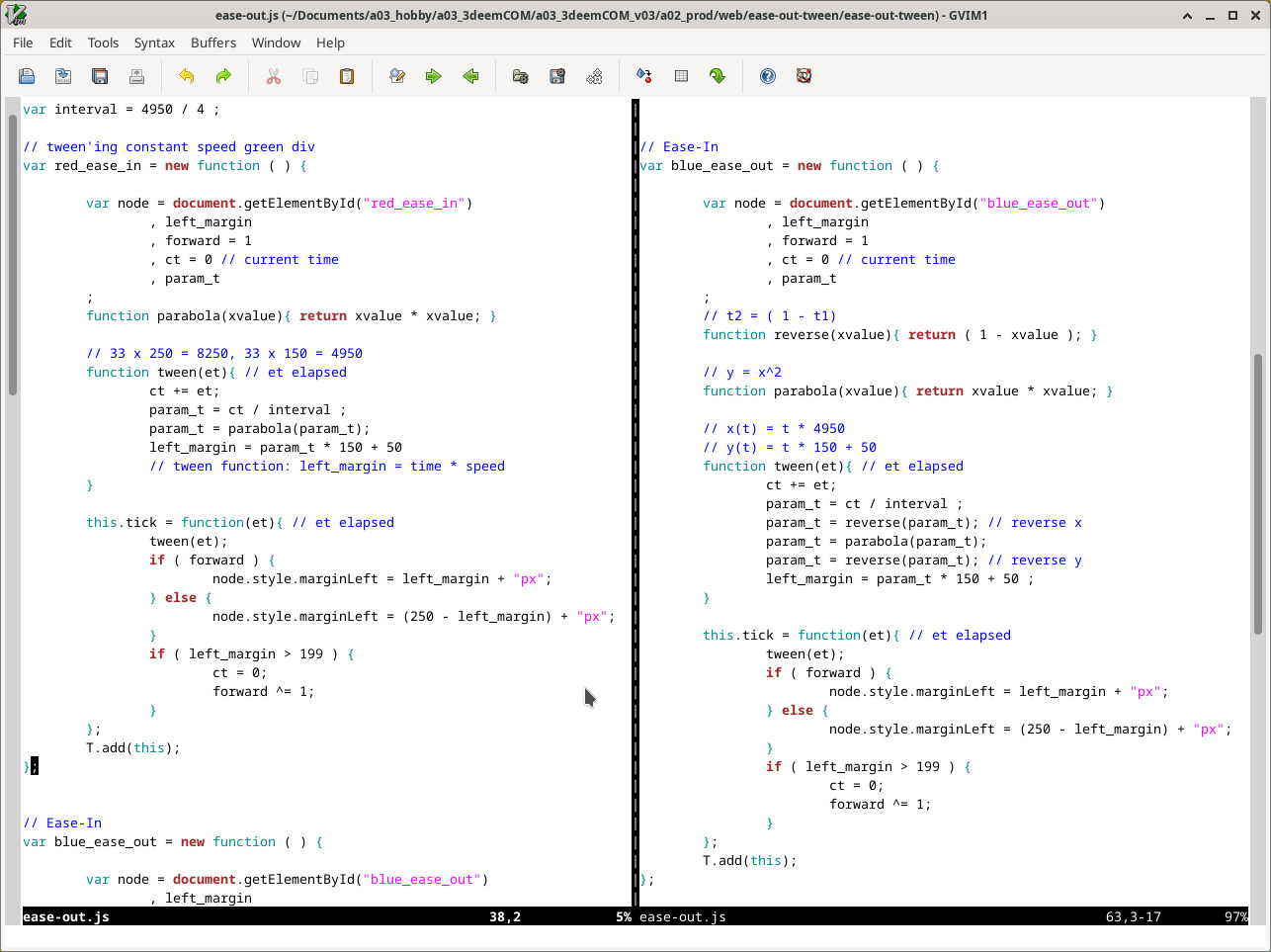

Incorporating the reversed parabola tween function into our animation programming starts with the Ease-In tween programming. With the Ease-In tween, we first calculate the normalized time value, then we run the parabola function, and then normalized linear function. For Ease-out tween'ing, we will again first calculate the normalized time value, then reverse it which will reverse the x-axis, then run the parabola function, then reverse it again which will reverse the y-axis and finally fun the normalized linear function.

demo in it's own page: ./ease-out-tween

css file link: ./ease-out-tween/ease-out.css

raf Timer file link: ./ease-out-tween/Timer.js

js file link: ./ease-out-tween/ease-out.js

Conclusion

The Ease-Out animation is exactly the same as the Ease-In function except in reverse on both the x and y axis.

Final Notes

Notice how easy it was to build-in additional component functions from linear to Ease-In to Ease-Out. That is testiment to the power of normalization. Normalized functions can be easily stacked in layers to create various algorithms.
